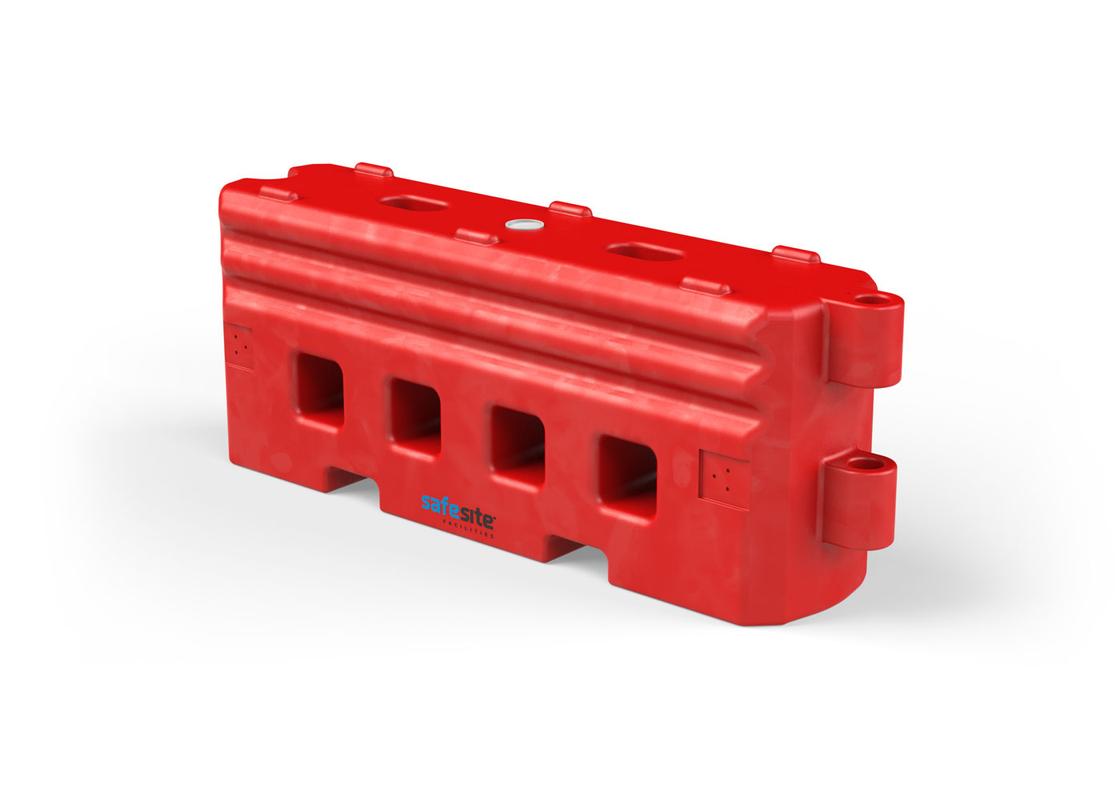

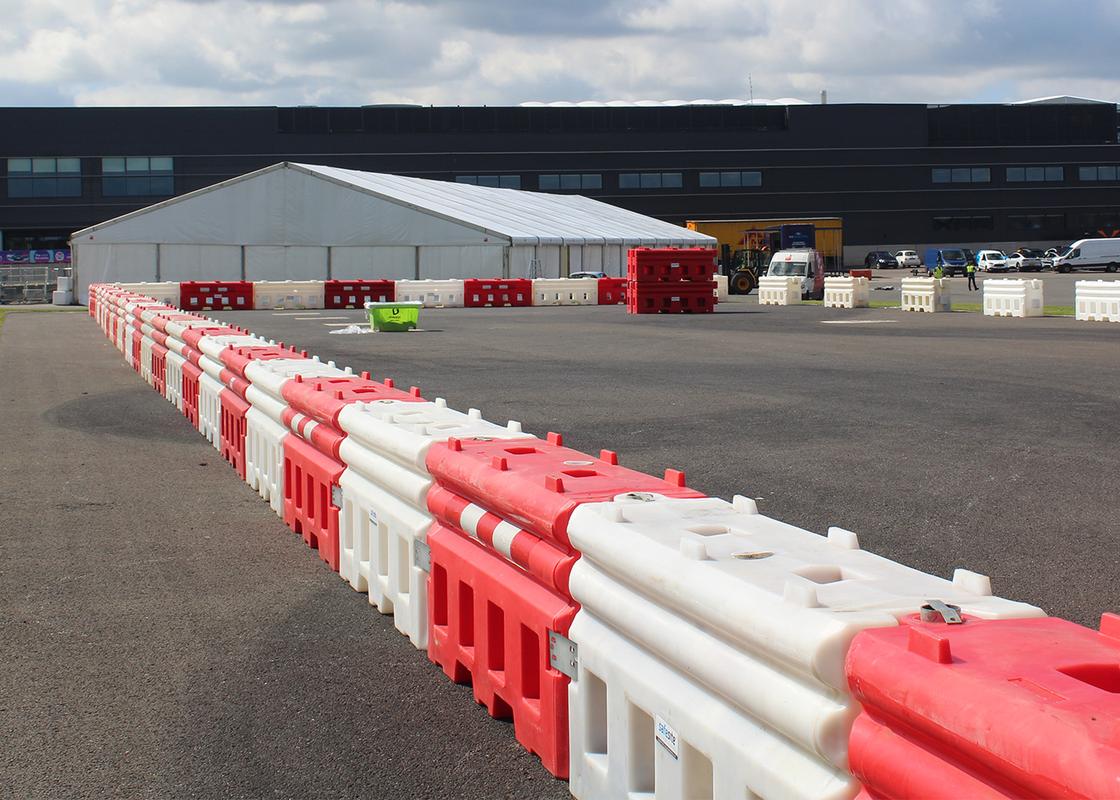

Water filled RB22 crash barriers are designed to withstand impact from vehicles travelling at up to 50 mph. They’re ideal for bordering off temporary roadworks and highway maintenance areas. When empty, they can be installed without the aid of machinery and are compatible with fencing systems.
Crash Tested and designed to withstand vehicle impacts at speeds up to 50 mph; TRL to BS EN1317 – N1 standard.

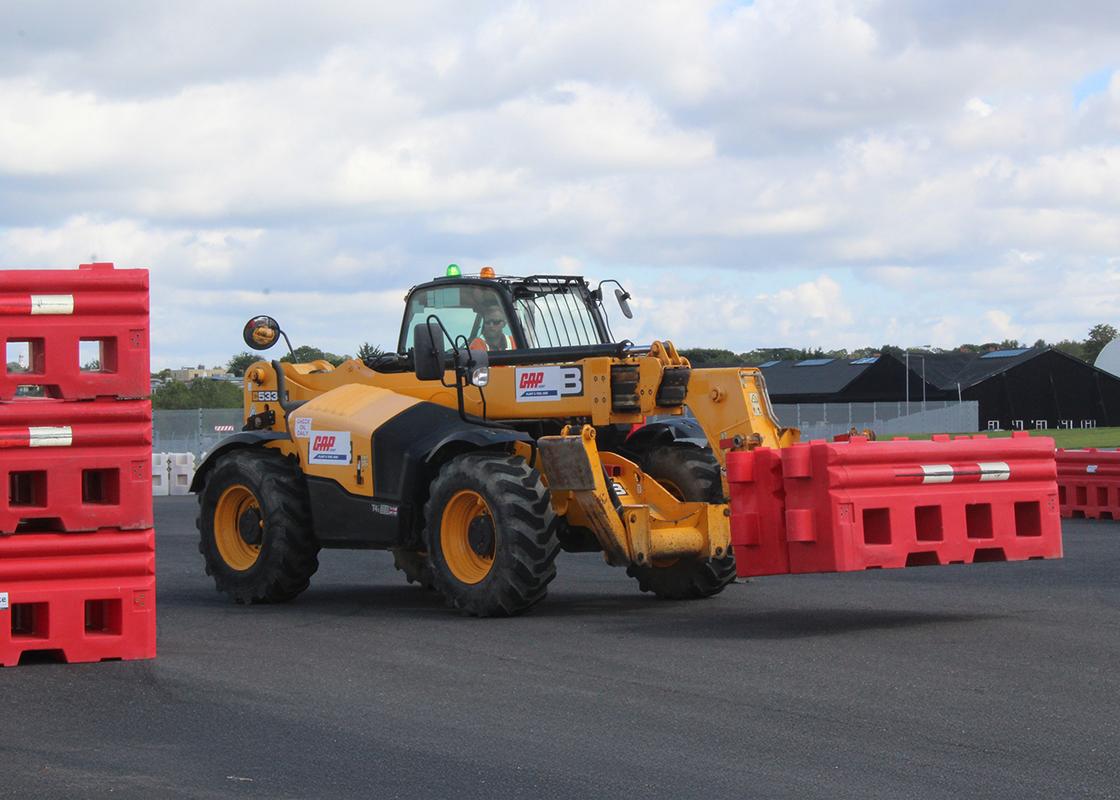

Lightweight for manual setup, with forklift slots for moving when filled. Quick assembly with minimal parts and tools.
Interlocking system with steel pins allows for curved layouts and compatibility with fencing and gate systems.
Supports mesh panels, solid hoarding, or hybrid (half mesh, half hoarding) configurations to meet different site needs.
Designed to safeguard both pedestrians and drivers, these robust freestanding barriers weigh up to 600kg when filled. They effectively absorb impact and deflect vehicles from the site. TRL crash tested to BS EN 1317 – N1 standard for speeds up to 50mph, they offer proven, reliable protection in high-risk areas.
For more information about the crash testing, please refer to our RB22 Specification Sheet for detailed insights.
The RB22 stands out as a reliable, high-performance water filled crash barrier ideal for roadworks, construction sites, and temporary traffic control. Here’s why it’s a smart choice over standard barriers:
Tested Safety: TRL crash tested to BS EN1317 – N1 for impacts up to 50mph

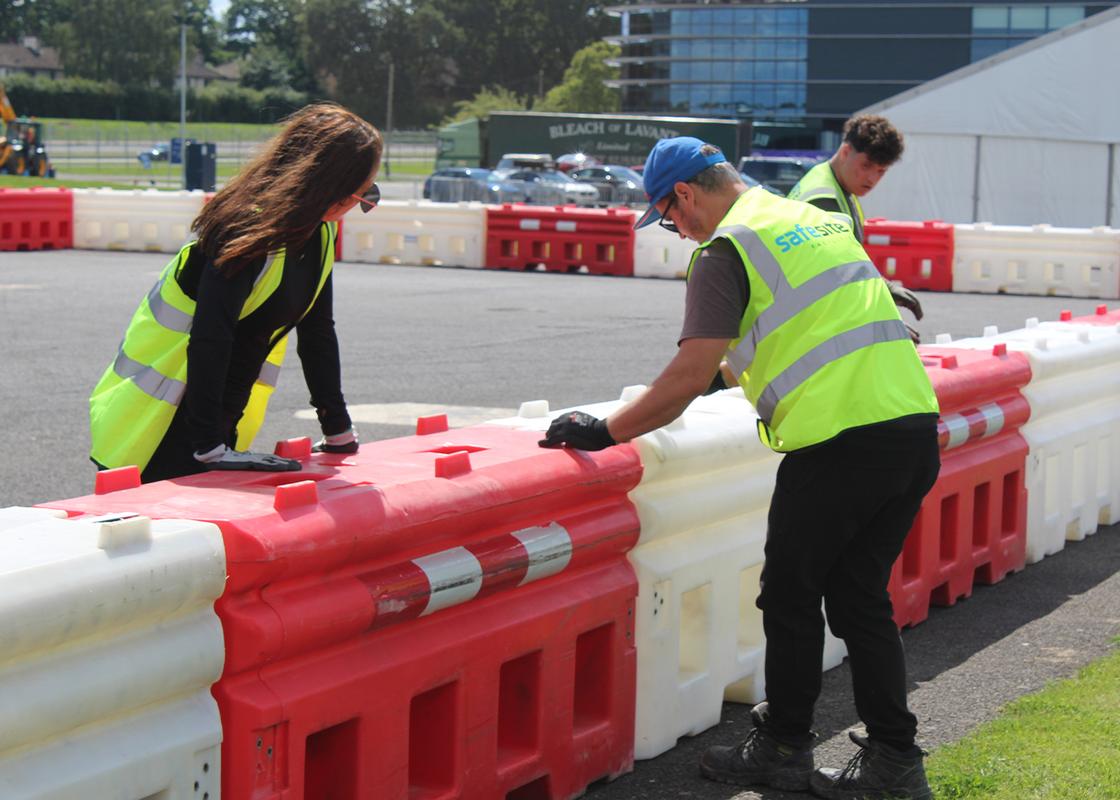

Quick, Tool-Free Setup: Lightweight for manual setup and quick assembly with minimal parts and tools
Enhanced Steel Plate Security: Steel plates can be added between barriers for extra strength and stability
Tough & Weather-Resistant: UV-stabilised, wind-rated, and built for harsh outdoor use
Fence & Gate Compatible: Works with mesh, hoarding panels, and access gates
Space-Saving: Securely stackable for easy transport and compact storage
Custom Branding: Available in corporate colours with optional name plating
Our RB22 water-filled barriers are available to buy or hire, with nationwide delivery for your convenience. Whether you need them for a short-term project or a long-term installation, we offer flexible options to suit your requirements.
Get in touch with SafeSite Facilities’ experienced and friendly team today for no-obligation advice and a free, tailored project quote.
2255mm Total Height
2875mm Total Height

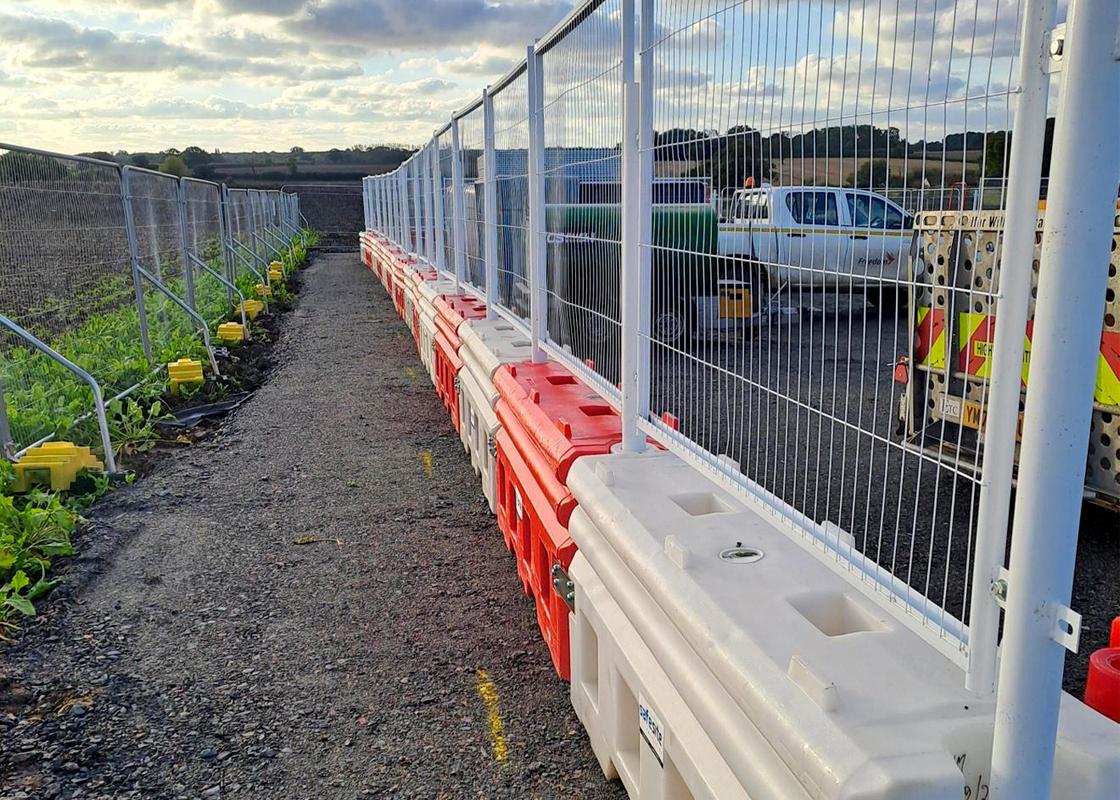

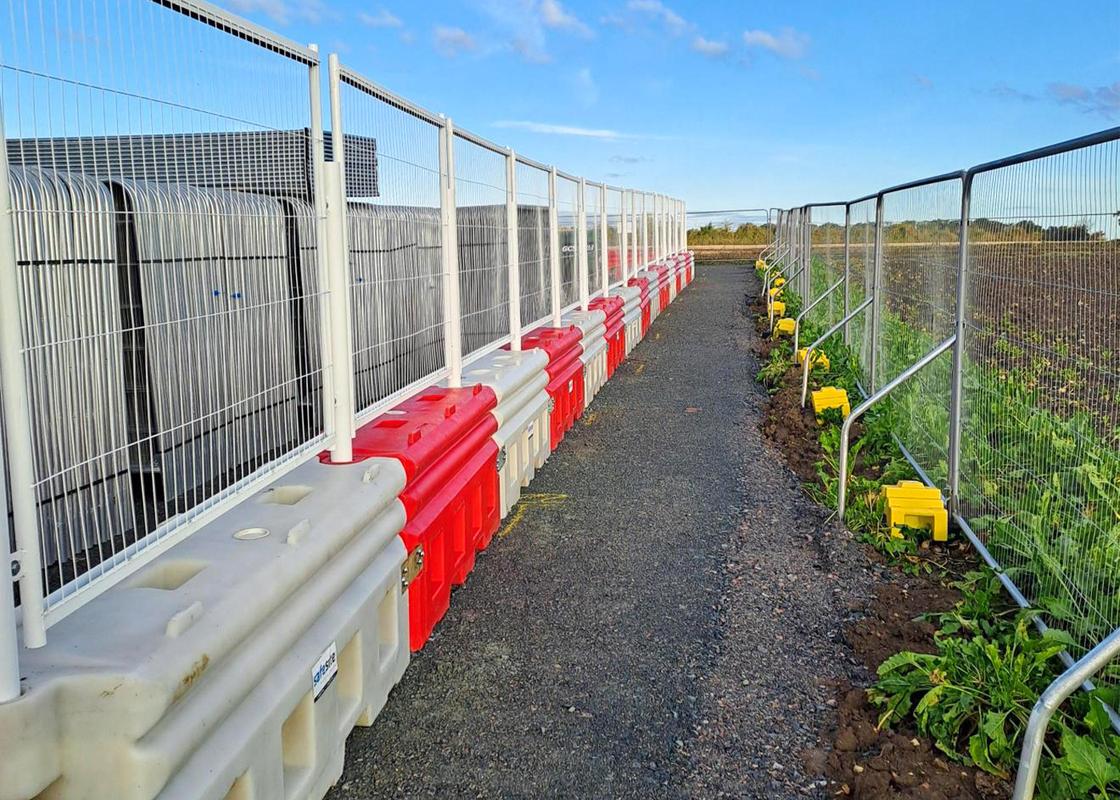

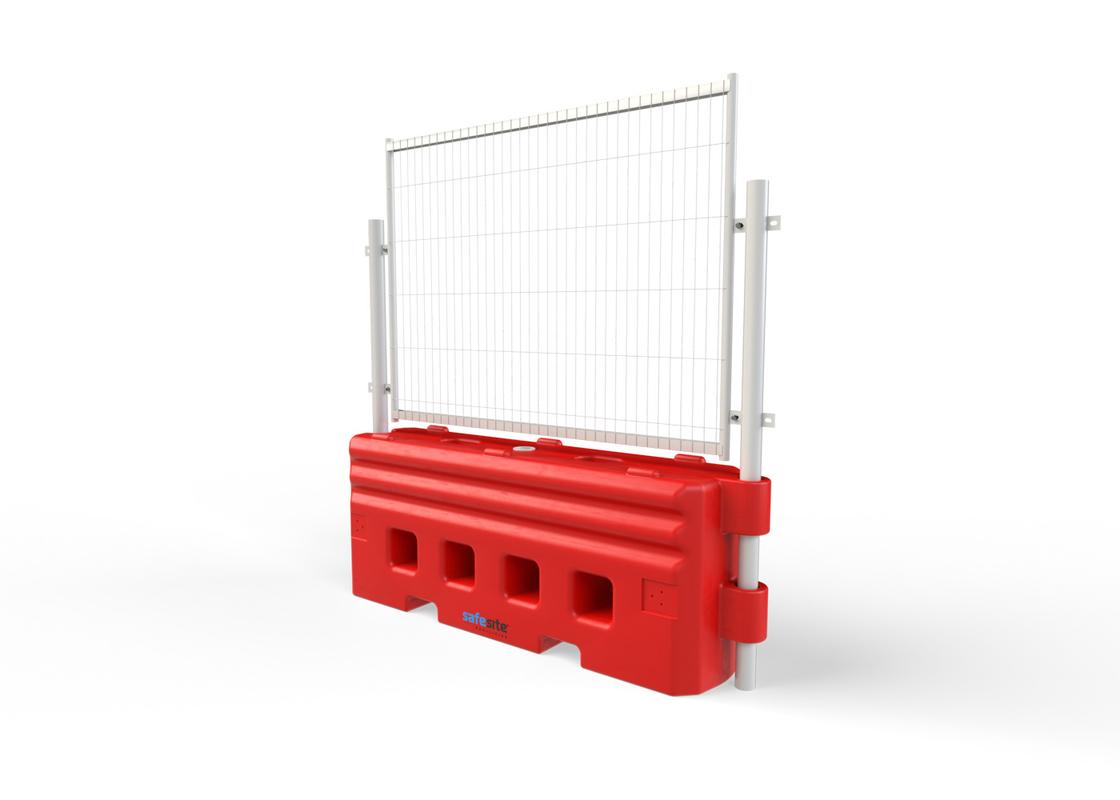

Our anti-climb mesh fence panels allow for professional, obscured view of your site whilst keeping intruders out.
When fitted to the RB22, this above ground, stable solution can with stand wind speeds of up to 77.8mph. The mesh panels can be supplied in a powder coated or galvanised finish. As with the hoarding panels, the mesh panels are fixed in place with a vertical pin and the barriers are screwed together using a metal fixing plate.
Over all installed height of 2255mm
Mesh fence extension add-on to reach a height of 2875mm
Wind resistance of up to 77.8mph
White powder coated or galvanised finish

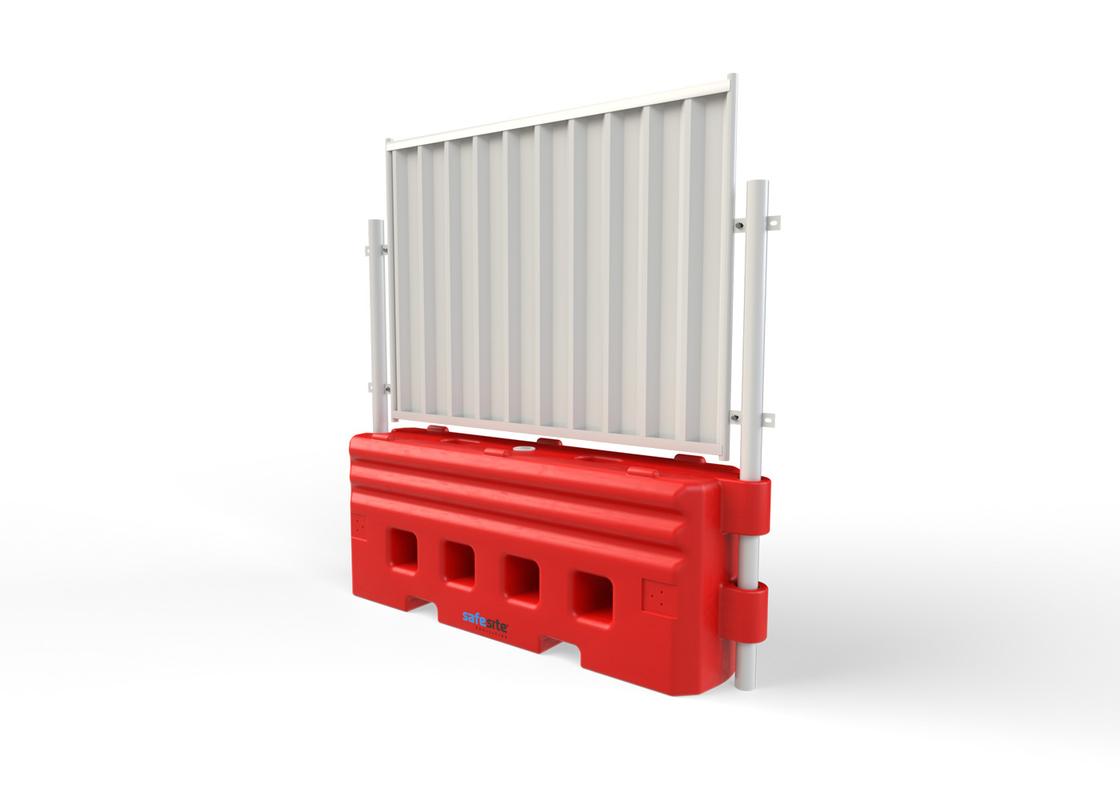

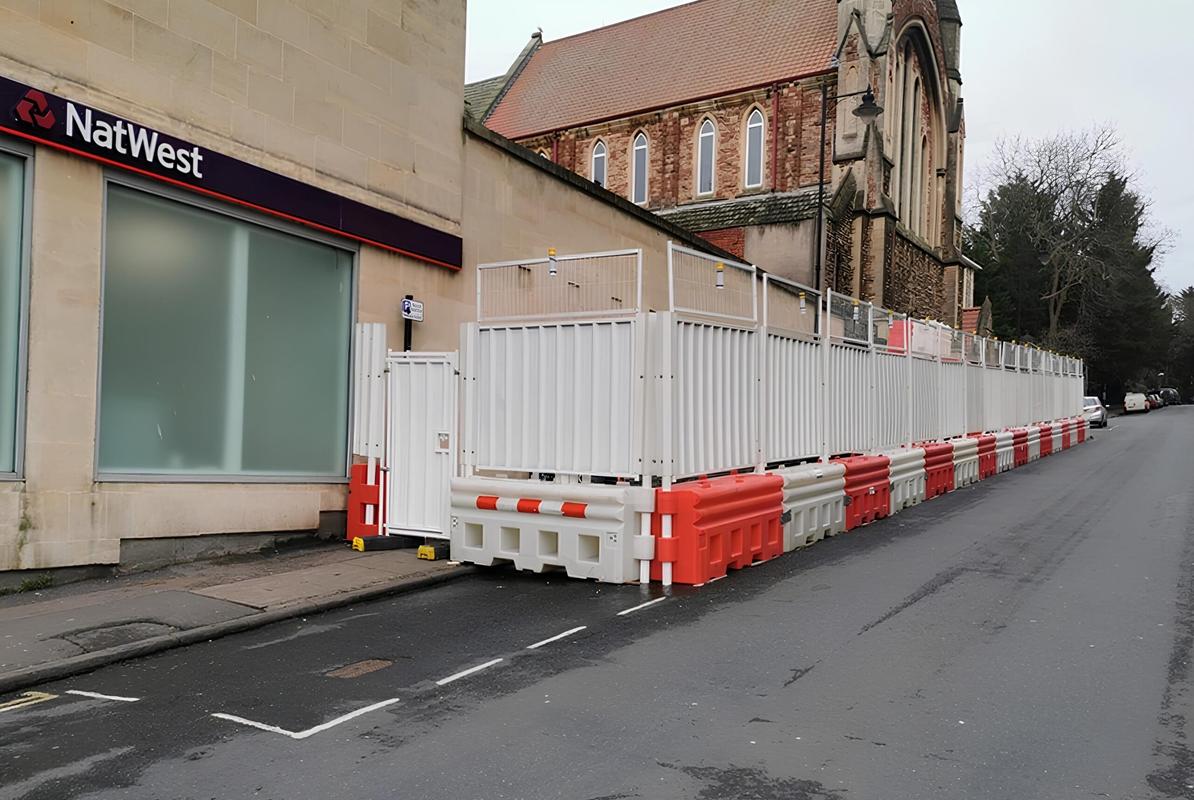

Hoarding is an excellent way to add privacy and protection quickly and easily. The RB22 can be used as a solid, above-ground base onto which you can fit hoarding panels. The panels slot easily into the ends of the barriers and are fixed in place with steel pins.
Over all installed height of 2255mm
Mesh fence extension add-on to reach a height of 2875mm
Wind resistance of up to 44mph
White powder coated or galvanised finish
Infill panels available

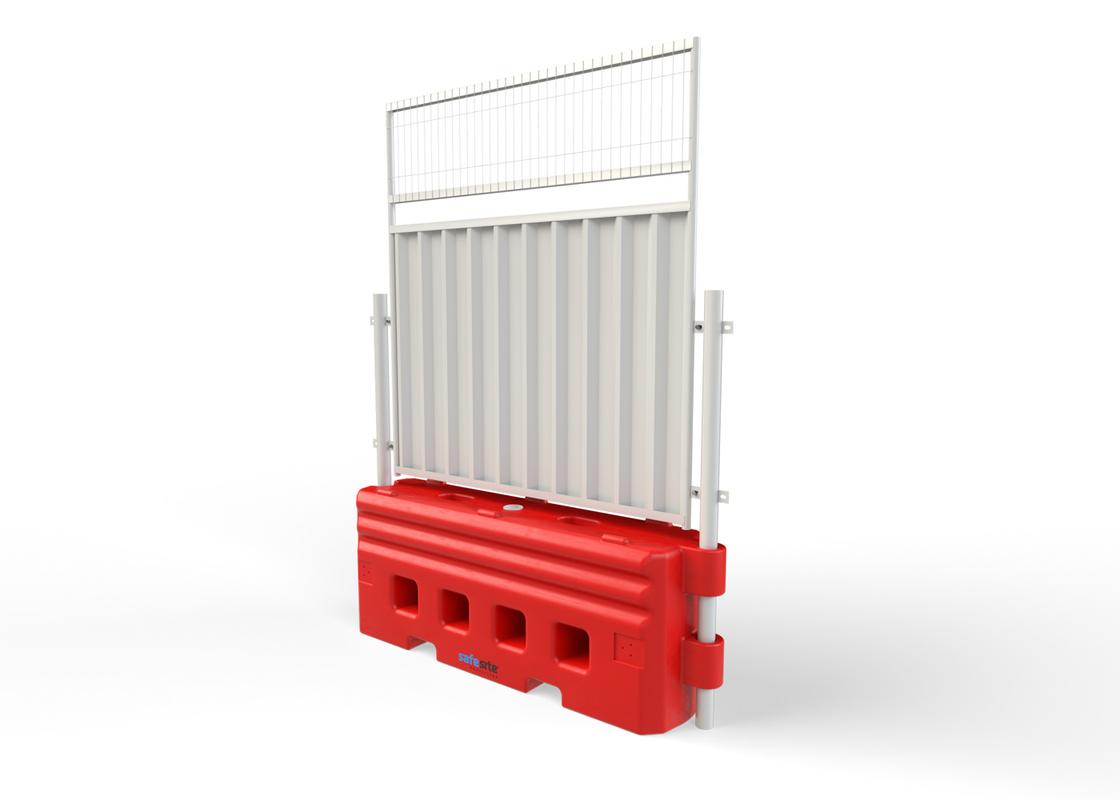

Hoarding is an excellent way to add privacy and protection quickly and easily. The RB22 can be used as a solid, above-ground base onto which you can fit hoarding panels. The panels slot easily into the ends of the barriers and are fixed in place with steel pins.
Over all installed height of 2255mm
Mesh fence extension add-on to reach a height of 2875mm
Wind resistance of up to 60mph
White powder coated or galvanised finish
Infill panels available

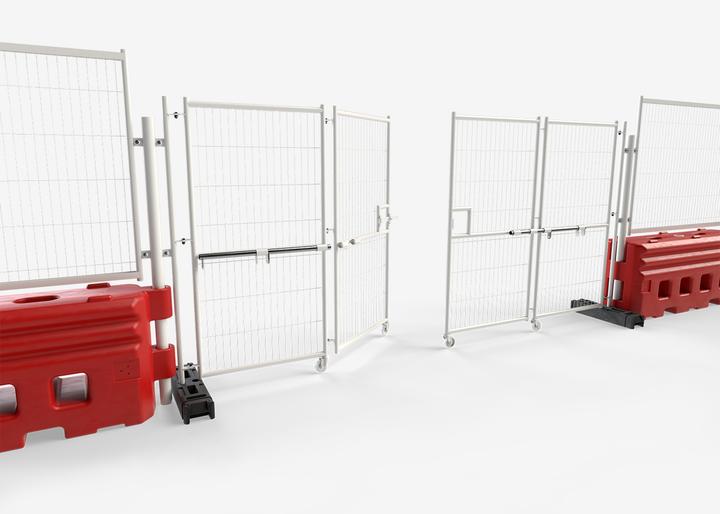

It is possible to install both a vehicle and pedestrian access point in our RB22 Barrier system. With the simple addition of an adaption pole, a flagpole can be used to fix a range of gate sizes and types to the RB22 system.
Just as we can offer with the perimeter solution, we can offer steel hoarding, mesh panels and hybrid (mesh/hoarding panels), to suit your site whatever the location, weather, or nature of your site needs.
The gates are secured in position using ballast blocks which are highly durable and purpose-built for outdoor sites including muddy and uneven surfaces. The simple and easy installation of the gates means that they are quick to install, secure and straight-forward to update.
The RB22 Pedestrian Gate is designed for fast, hassle-free installation—just remove one RB22 water-filled barrier and slot the gate securely into place. This makes it an ideal solution for temporary worksites or areas with frequently changing access needs.
Purpose-built to integrate seamlessly with the RB22 Crash Barrier system, it is fully compatible with both mesh and hoarding panels, ensuring a cohesive and secure perimeter setup.
The RB22 Barrier has been tested in the MIRA wind tunnel, and achieved multiple Class A passes.
On its own, the RB22 can withstand speeds of up to 78 mph. The level of wind resistance offered by this temporary solution depends on the level of mesh you incorporate into the system. You can adjust the level of mesh and solid panel hoarding you use, according to the different wind load speeds and requirements of your site.
RB22 Barrier Single Unit
RB22 Barrier + Mesh Fence Panel
RB22 Barrier + Half Hoarding, Half Mesh Panel
RB22 Barrier + Hoarding Panel

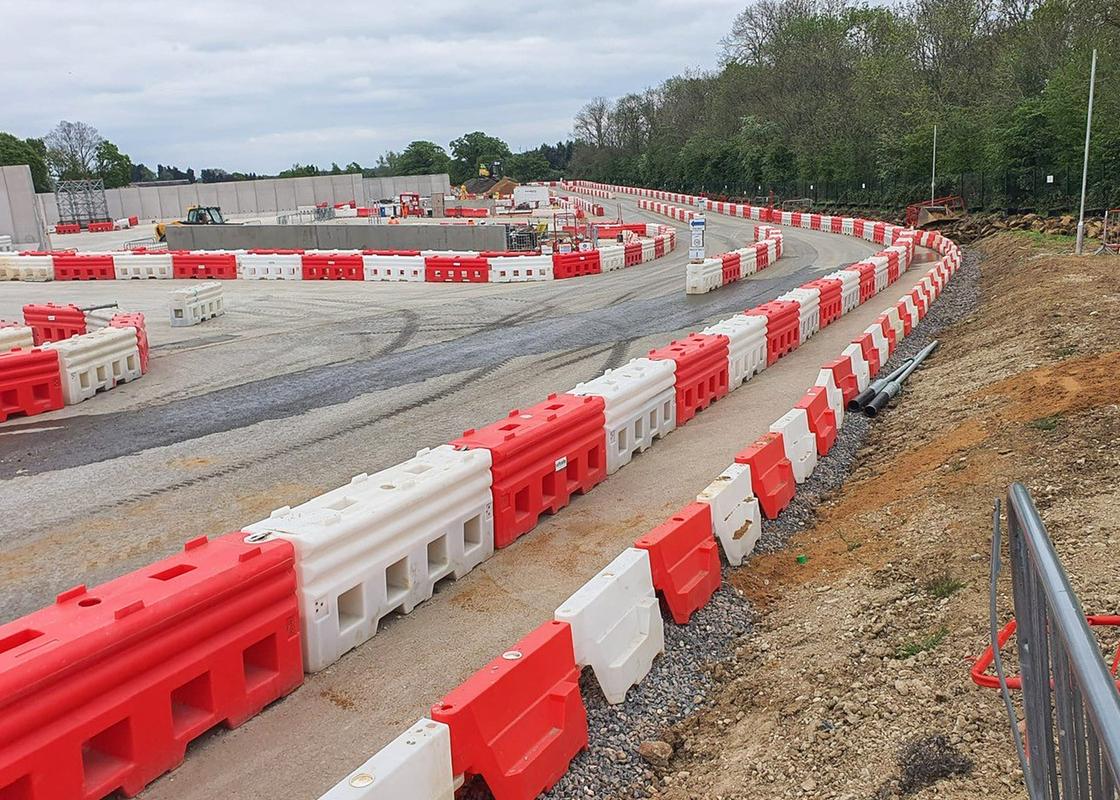

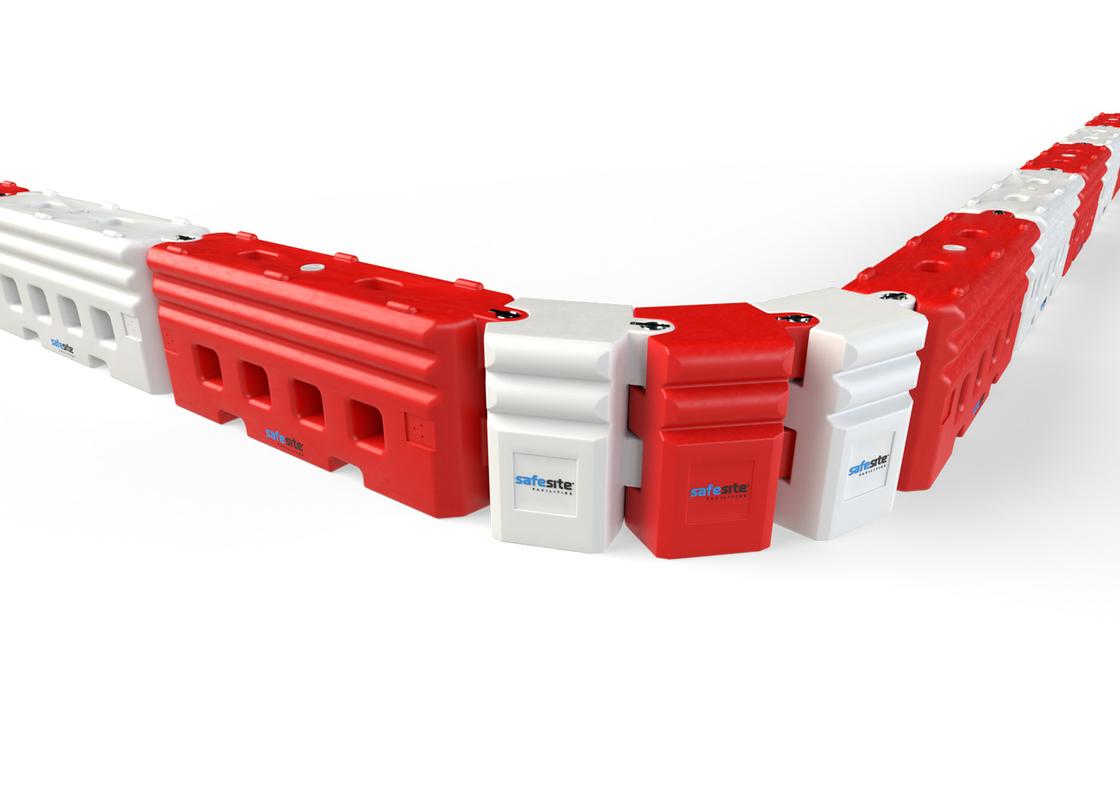

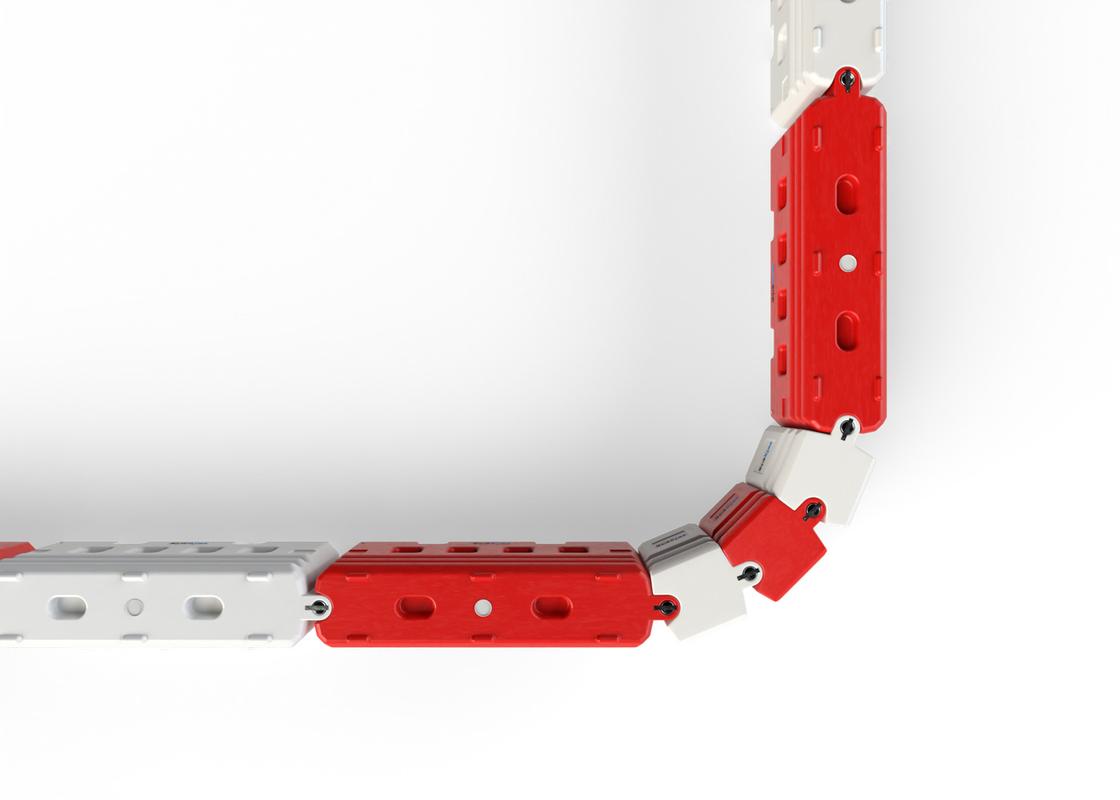

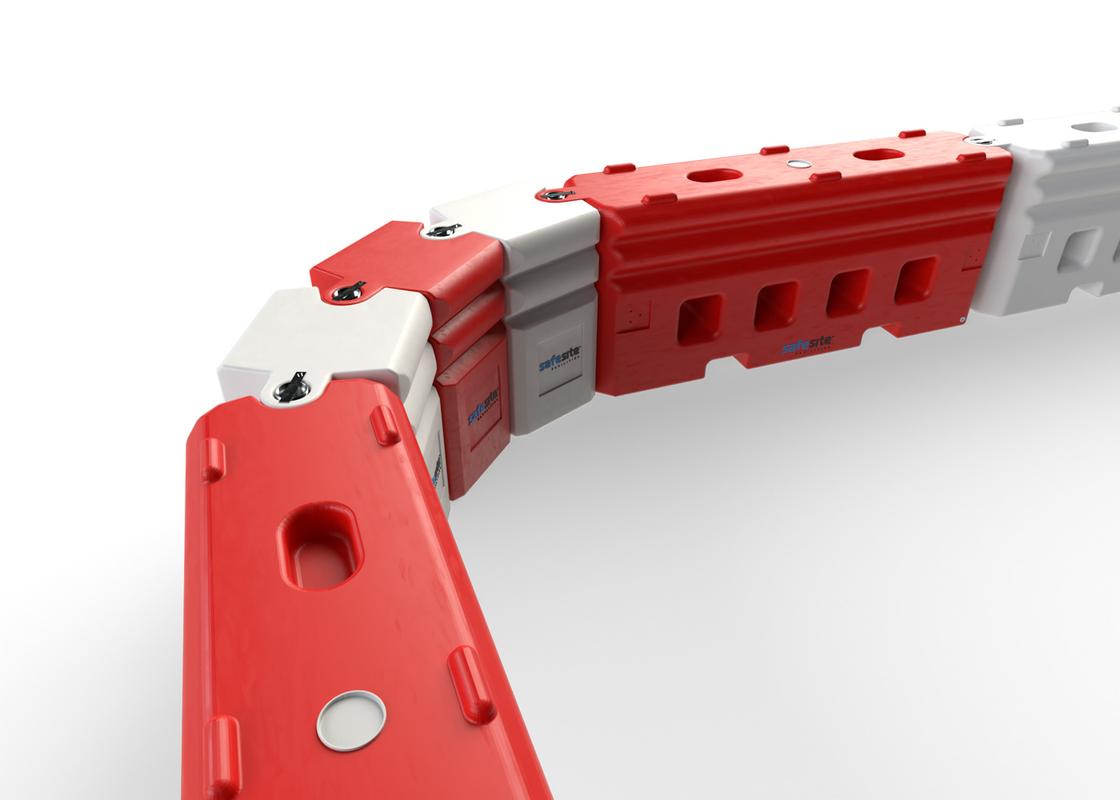

In addition to its versatility in terms of fence and panel products, the RB22 Barriers can also be used to navigate sweeping corners and 90° angles.

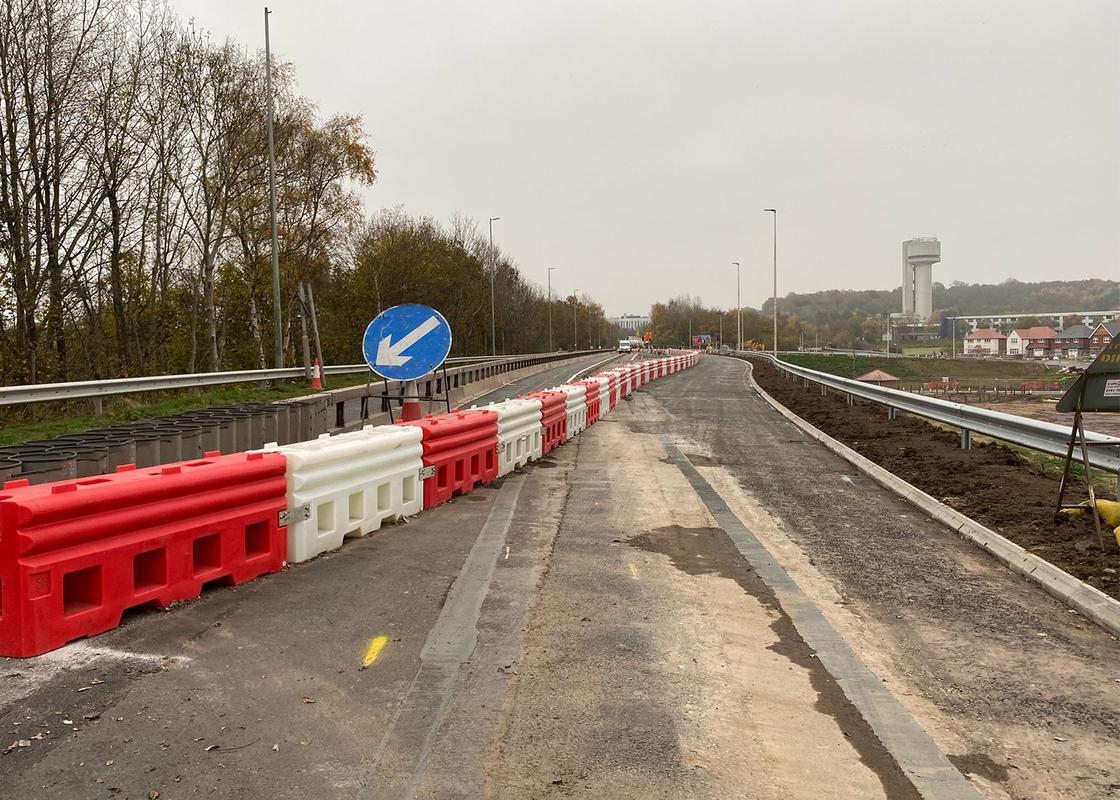

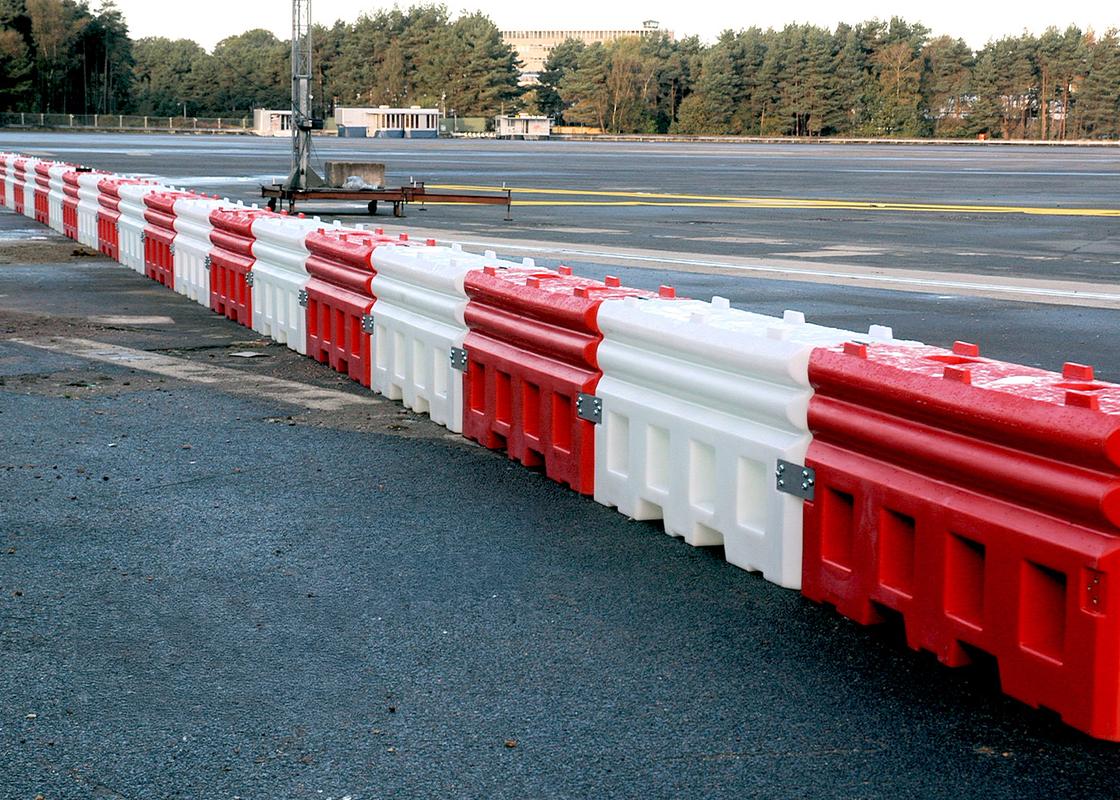

The RB22 barrier’s design and strength when filled, means they’re ideal for use on racetracks and highways as a substantial traffic safety solution.
RB22 Barrier End Stops are designed to provide a secure termination point for RB22 water-filled crash barrier systems.
Constructed from UV-stabilised prime polyethylene, these end stops complete a line of barrier and enhance safety by eliminating exposed edges and created a clean and finished look.
