If you need a durable, all-weather product that is crash and wind tunnel tested, as well as easy to install – look no further.
Quick and competitive quotes. Nationwide coverage
Quick quotes. Nationwide coverage
Manta Barriers
- Crash tested to T2 W7 levels, without re-enforcement bars
- Easy to assemble and install
- Anti-vandal design
- 'Class A' Wind Tunnel Test Certification
- Accommodates 90 degree bends
- Anti-climb fence and steel hoarding available
- Vehicle roll-on-roll-off stability
Hire from
£5.00per unit/week ex. VAT
Buy from
£195.00per unit ex. VAT
In Stock
Prices vary by quantity and delivery location
Key Features
Crash & Wind Tested
Crash tested to T2 W7 standards without the need for reinforcement bars, and capable of withstanding wind speeds up to 74 mph.
Heavy Duty Barrier
Made from long-lasting, recyclable galvanised steel and powder-coated to provide high visibility and capability to withstand all weather conditions.
UK Manufactured
Manufactured in the UK to ensure high quality, reliability, and full compliance with site safety standards.
Fencing & Hoarding Options
Fencing & Hoarding options supports pedestrian mesh panels, 2m mesh & solid hoarding configurations to meet different site needs.

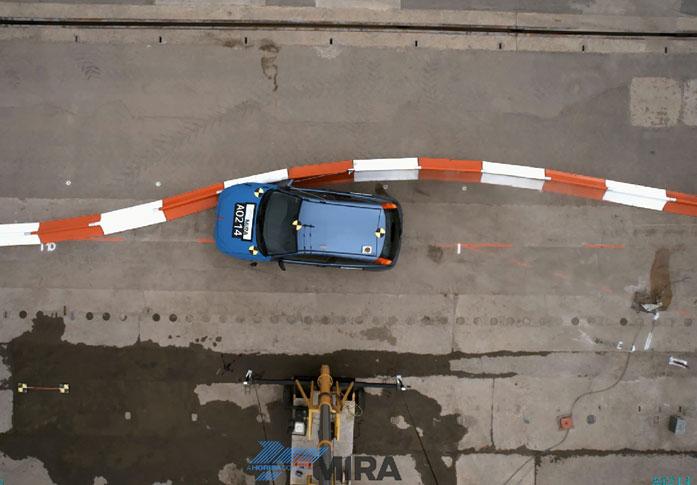

Crash-tested for Safety
Crash-tested for Safety
The new Manta barrier system has been meticulously crash-tested by experts and proven to provide superior protection against severe impact with a phenomenal “A” rating in its ASI and THIV assessments. The British Standard crash course W7 of BS EN 1317:2010 was passed with flying colours.
Withstanding an impressive 1,300 kg impact at over 50 mph, the new Manta barrier absorbed the energy of crashes, minimising damage to both vehicles and the barrier itself. This level of performance makes the Manta barrier an ideal solution for roads with high speeds and heavy traffic.
For more information about the crash testing, please refer to our RB22 Specification Sheet for detailed insights.
Why Choose Manta?
Why Choose Manta?
Manta barriers will last for the full lifetime of your project, whether you’re involved in street works, road or highway works, traffic management, construction sites, car parks or events.
Crash tested to T2 W7 levels, without re-enforcement bars
Wind tunnel classification of Class A/74mph
Quick and easy to assemble, install and reposition
Accommodates 90° bends with Manta Corner Barriers
Stackable for easy transportation and storage
Can be used with mesh fence and steel hoarding panels
Available in a range of high visibility powder coated colours
Hire or Buy Nationwide
Hire or Buy Nationwide
Our Manta Barriers are available to buy or hire, with nationwide delivery for your convenience. Whether you’re working on a short-term project or a long-term installation, we provide flexible solutions to match your needs.
Speak with SafeSite Facilities’ experienced and friendly team today for no-obligation advice and a free, tailored quote for your project.
Delivery & Installation
Delivery & Installation

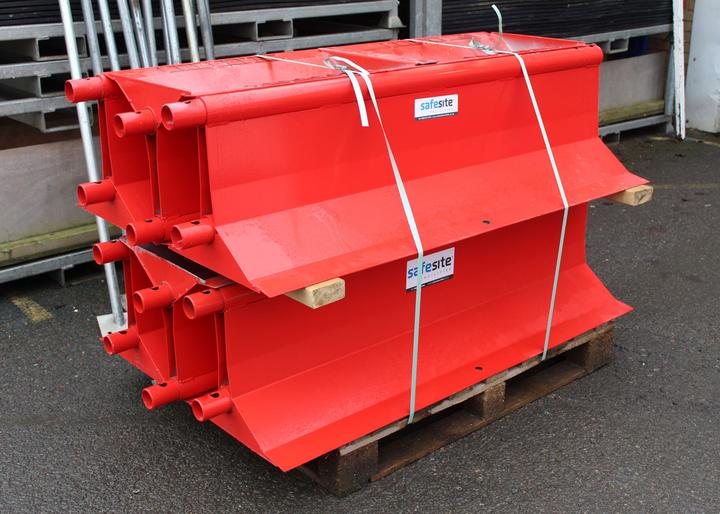

We offer a nationwide delivery and installation service. Manta barriers are stacked and delivered on pallets of six units, which can be unloaded using a forklift. For further information on how to dismantle, move, stack and pack Manta barriers please see the product specification sheet.
Options for the Manta Barrier

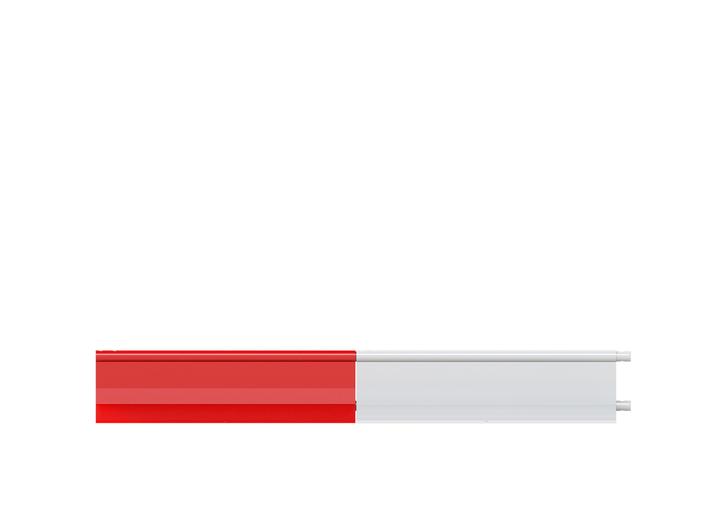

Manta Barrier
420mm Total Height
Manta Pedestrian Fence
1000mm Total Height
Manta 2m Mesh
2000 Total Height
Manta 2/2,4m Hoardig
2000/24000mm Total Height

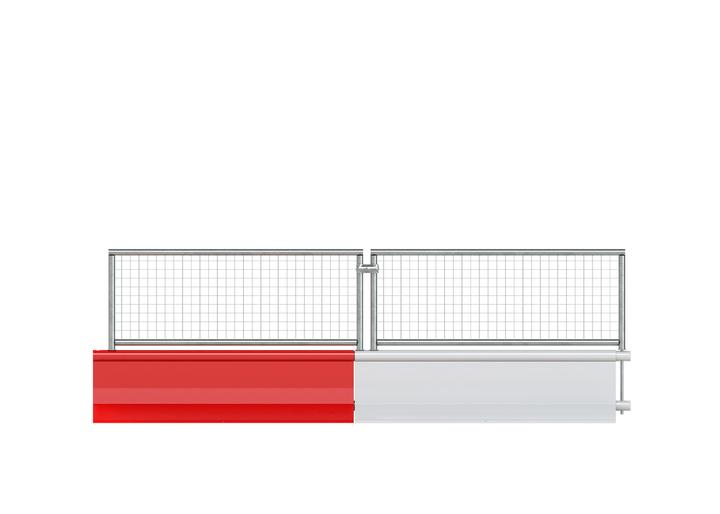

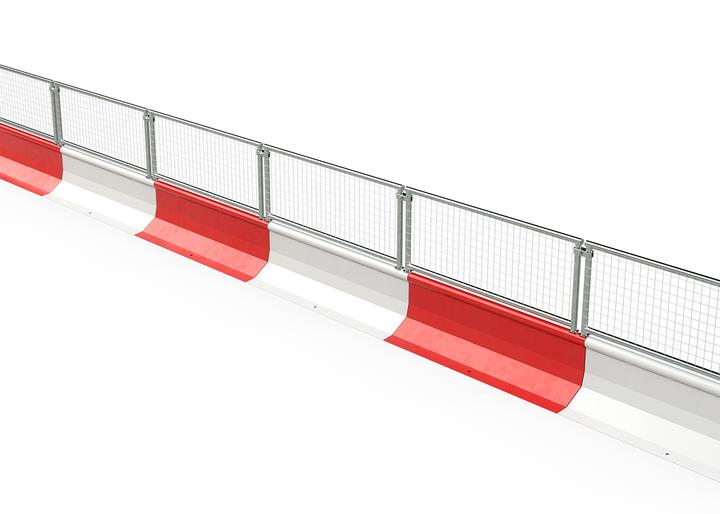

Mesh Pedestrian Fencing
Mesh Pedestrian Fencing
The Manta Barrier Pedestrian Fence Extension weighs just 5kg yet increases the overall barrier height to 1m. Quick and easy to install, it provides added security for drivers, workers, and pedestrians, helping to reduce the risk of perimeter breaches.
Creating total height of 1m
Wind resistance of up to 60mph
Lightweight, quick and easy to install
Option for a hi-vis chapter 8 fence version
In-line Manta Pedestrian Gate available
Mesh 2m Fencing
Mesh 2m Fencing
In addition to its standalone benefits, the Manta Barrier can accommodate one of the lightest 3m anti-climb fence panels available, making manual handling easier. This quick-fit add-on increases the overall height to 2m, significantly reducing the risk of perimeter breaches.
Creating an overall height of 2m
3m wide fencing used over two manta barriers
Anti-climb mesh
Quick and easy to install
Manufactured using galvanised steel
Provides protection to workforce and pedestrians

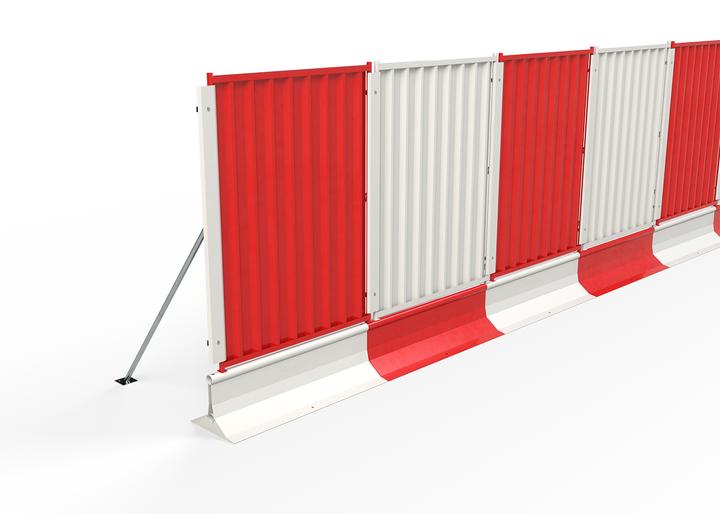

Hoarding Panels
Hoarding Panels
Our hoardings, available in 2m and 2.4m, can be installed on any hard surface, ideal for roadworks and site perimeters. Made from corrugated galvanised steel with bright powder-coated colours, they mark boundaries, obscure the site, and provide Manta Barrier-level crash protection. Installation is quick and easy using the same slot-in system as other Manta fencing.
Increases overall height to 2m or 2.4m
Corrugated steel construction
Powder coated in hi vis red and white or galvanised
Quick and easy to install
Provides protection and obscures sight lines

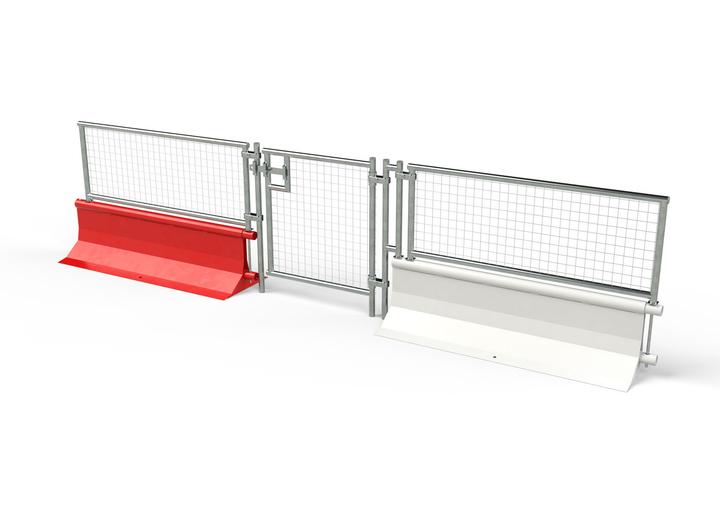

Vehicle & Pedestrian Gates
Vehicle & Pedestrian Gates
Manta Barriers’ vehicle and pedestrian gates provide secure, controlled access with durable galvanised steel for long-lasting, corrosion-resistant performance. Pedestrian gates work with our pedestrian fencing, while standard gates fit the 2m mesh fencing, with hoarding options also available for a complete, climb-resistant perimeter solution.
Wind Tested
The Manta barrier was tested in an internationally renowned wind tunnel both with and without fence panels attached. When test on its own, the manta barrier received an “A” rating. This means that the barrier withstood wind speeds of up to 74-mph before being displaced.
With a pedestrian barrier affixed, the barrier was able to withstand wind speeds of up to 60mph, and 44mph with an anti-climb mesh fence.
Class A/ 74mph
Manta Barrier Single Unit
Class A/ 60mph
Manta Barriers + Pedestrian Rail
Class B/ 44mph
Manta Barriers + Mesh Panel
Corner Sections
Corner Sections
Manta Barrier Corner Sections give the ability to rotate units at 90° to accommodate right angles and bends.
Common applications include defining pedestrian walkways and vehicle access, for example, to create a pit lane on a construction site or anywhere that requires the demarcation of vehicle traffic and footfall for pedestrian, visitor and workforce safety
End Stops
End Stops
A Manta Barrier run can be safely and neatly finished using our purpose-designed end section, available with both male and female connections. It eliminates hazardous exposed edges while maintaining the standard barrier height and full compatibility with all fencing add-ons.
The end section also acts as an impact-absorbing cushion, helping to protect connection points if the barrier is struck. Its octagonal design reduces movement when stacked on its side during transport, providing a more stable and secure transit solution compared to round alternatives.
Related products
Manta Lite Barriers
Buy from£163.35ex. VATHeight 420mm
Height with Fencing 1000mm or 2000mm
Depth 500mm
Width 1500mm
Weight 26.2kg
Manta Unpainted Barriers
Buy from£123.81ex. VATHeight 420mm
Height with Fencing 1000 or 2000mm
Depth 500mm
Width 1500mm
Weight 48kg
MASS Barriers
Hire from£5.00ex. VATBuy from£335.44ex. VATHeight 420mm
Depth 500mm
Width 1500mm
Weight 48kg
RB22 Crash Barrier
Hire from£5.95ex. VATBuy from£300.00ex. VATHeight 800mm
Height with Fencing 2250mm
Depth 500mm
Width 2000mm
Weight 60kg
Filled Weight 600kg
