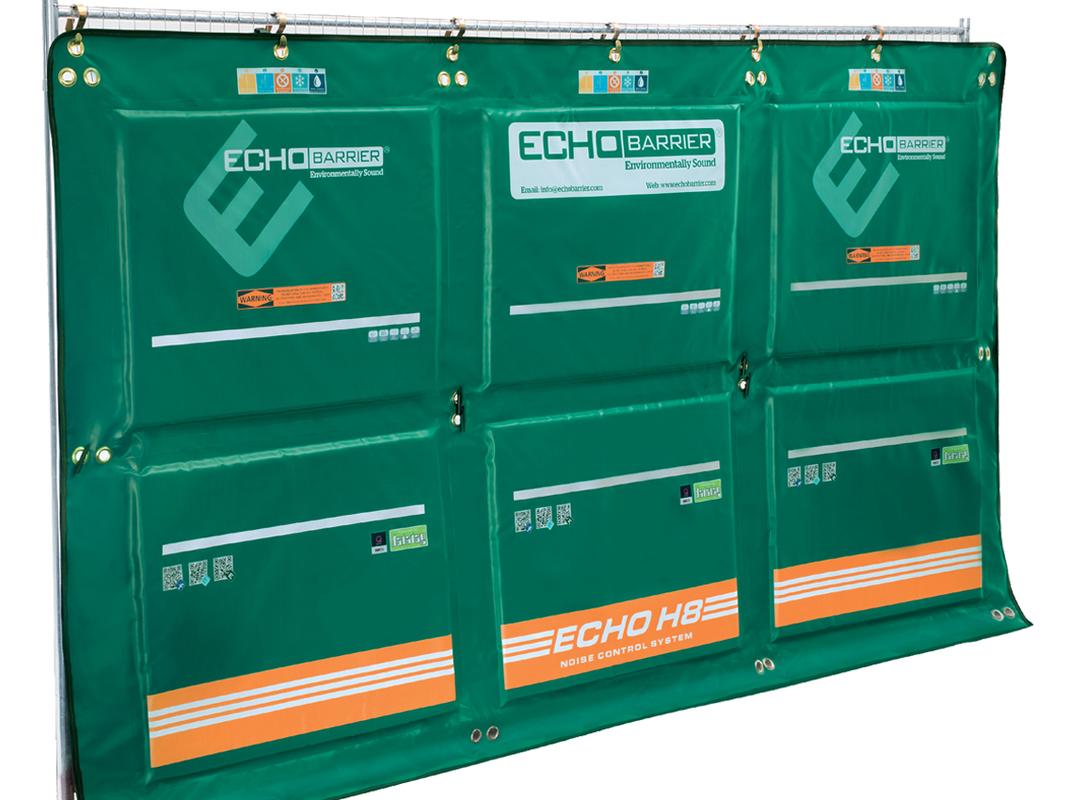

Echo H8 Acoustic Barrier

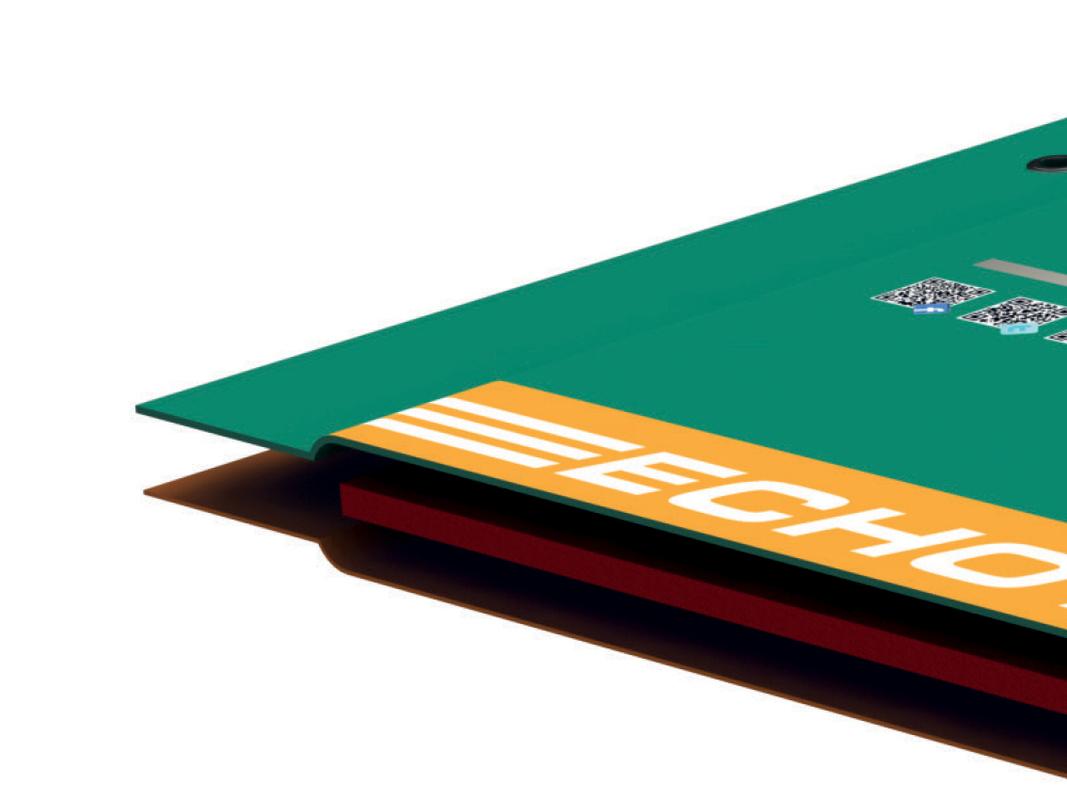

Echo H8 Barrier Layered

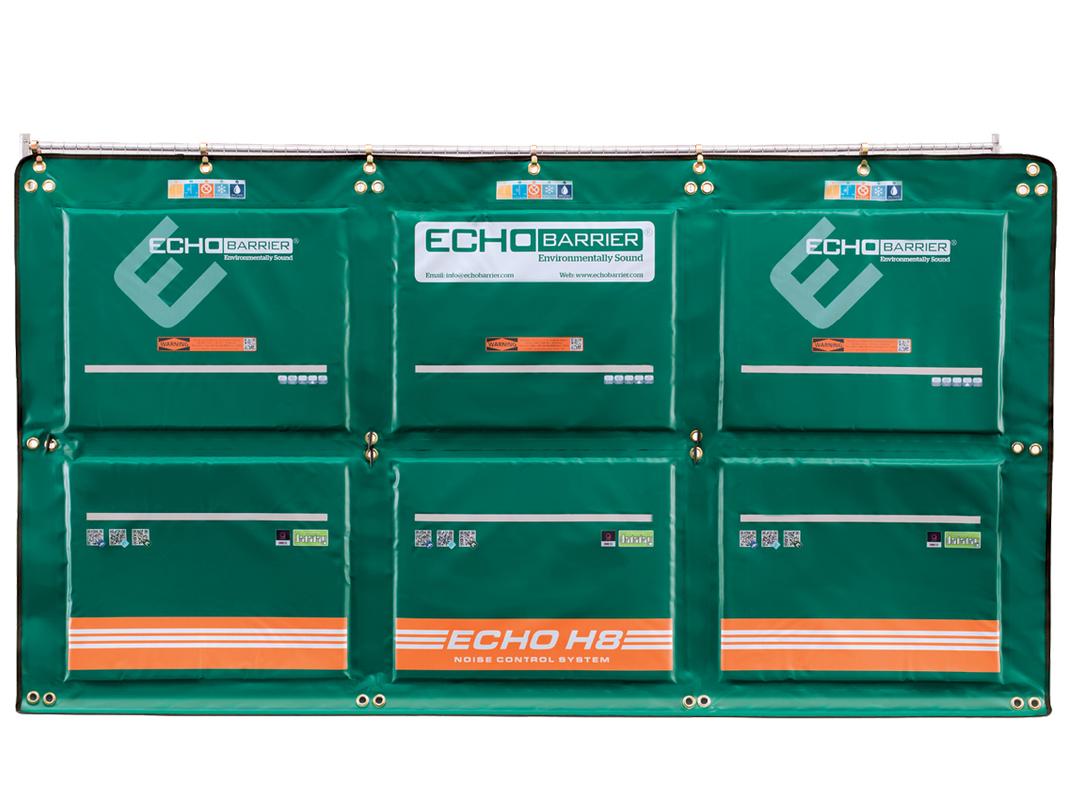

Echo H8 Acoustic Barrier Flat

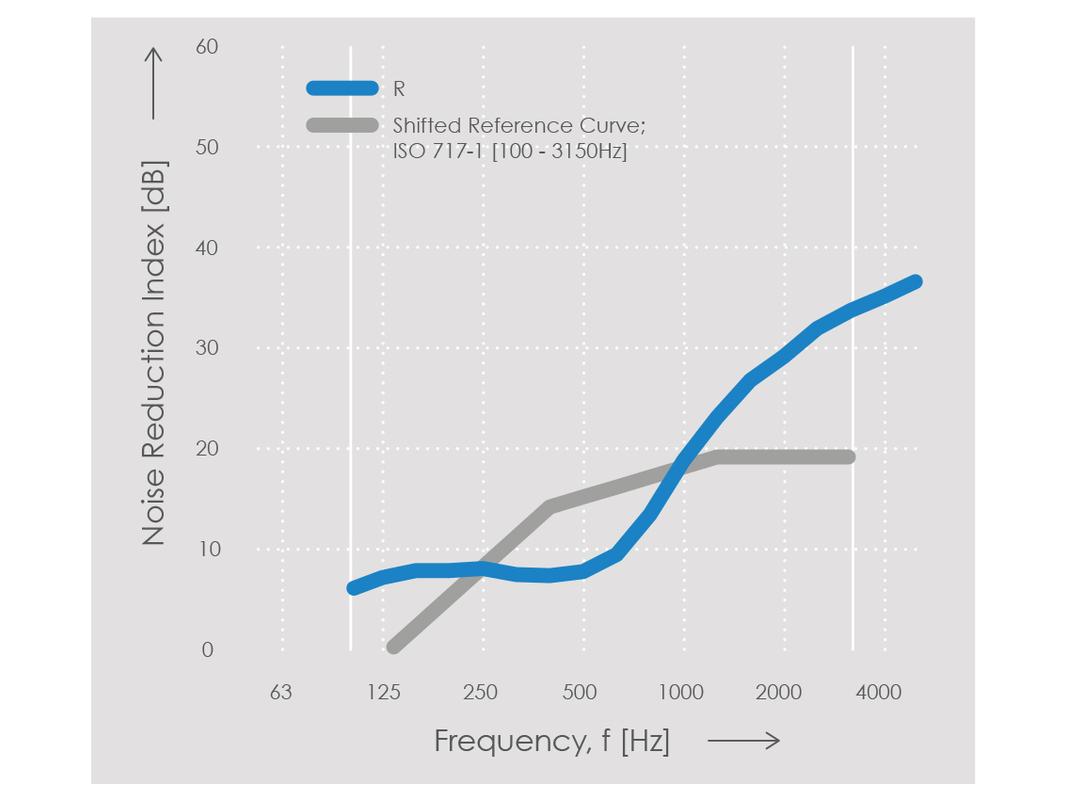

Echo H8 Noise Reduction Chart

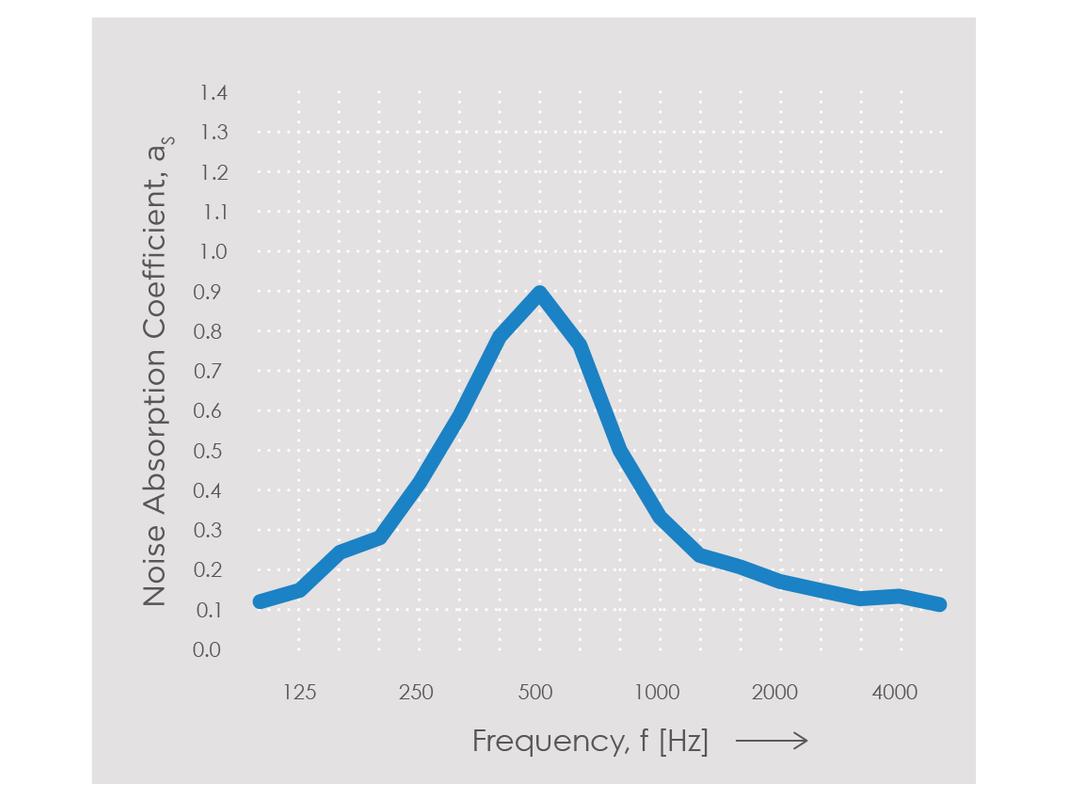

Echo H8 Noise Absorption Chart

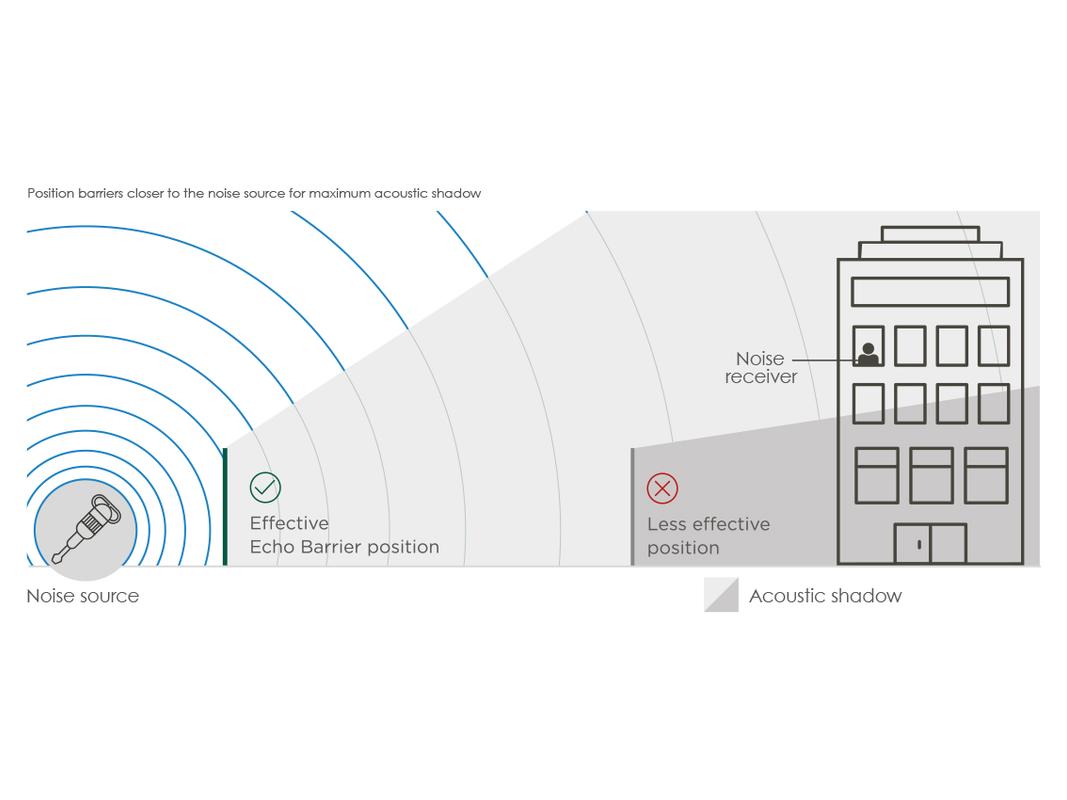

Echo H8 Sound Travel Diagram

Echo Acoustic Barrier H8

  • 5 Year UV Resistance
  • Night-time reflective strips, hazard icons
  • Security cable, Data tag
  • Water and fire resistant
  • Easily hung on walls, fences, hoarding etc for effective noise reduction
  • Hire or Buy
  • In-stock
  • Easy deploy
  • Anti-climb
  • High visibility
Request a free quote

Prices vary by quantity and delivery location

Product details

Key features

  • Height 2050mm

  • Width 3650mm

  • Weight 9kg

  • Max Noise Reduction 37 dB

  • Max Noise Absorption 89%

Download Spec Sheet

AKA: Noise Barrier, Sound Wall, Noise Wall

When you need to create long stretches of acoustic fencing fast, the H8 acoustic barrier is the ideal option.

At 3.5 metres, an H8 barrier is about three times the length of our standard product – yet it’s still lightweight at just 9kg. It’s also waterproof, weatherproof, fire resistant, and has a five-year lifespan.

The Echo Barrier H8 is a temporary portable acoustic barrier that has been designed to fit on one standard 3.5m (12ft) fence panel making it ideal to cover large areas quickly.

It has a very good noise reduction and absorption. It is lightweight, durable and water, fire and temperature resistant, meeting the following standards: Water resistant: BSEN 60529:1992 IPX9, Fire resistant: BS 7837-1996 & Cold resistant: BSEN 60068/2/1:2007.

H8 acoustic barriers’ long dimensions speed up installation. But because they’re lightweight, it takes just one person to handle each barrier.

So your team can hang a long stretch of H8 units around 70% faster than any other barrier on the market.

The H8 acoustic barrier has been scientifically developed to give maximum noise reduction performance in all weathers. In fact, our British Standard certification confirms that they’re weatherproof and waterproof.

The H8 temporary noise reduction barriers give you maximum sound control in very high temperatures. Their hi-tech, fire-resistant membrane makes them effective, and safe to use, in these extreme conditions.
